AiRTouch 905
Portable X-Ray

A portable X-ray system with a high-performance digital sensor and built-in PC. Lightweight enough for hospitals, home visits, veterinary clinics, and field deployments — and unlike conventional portables, AiRTouch acquires images directly on-device and wirelessly transmits them via the built-in workstation.

10.1″ HD Touch Screen Wi-Fi + Ethernet + USB Multi-Leaf Collimator
90 kV
Max output · 5 mA
0.5 mm
Focal spot · 19° anode angle
450 W
Power output
10,000 J
Heat capacity

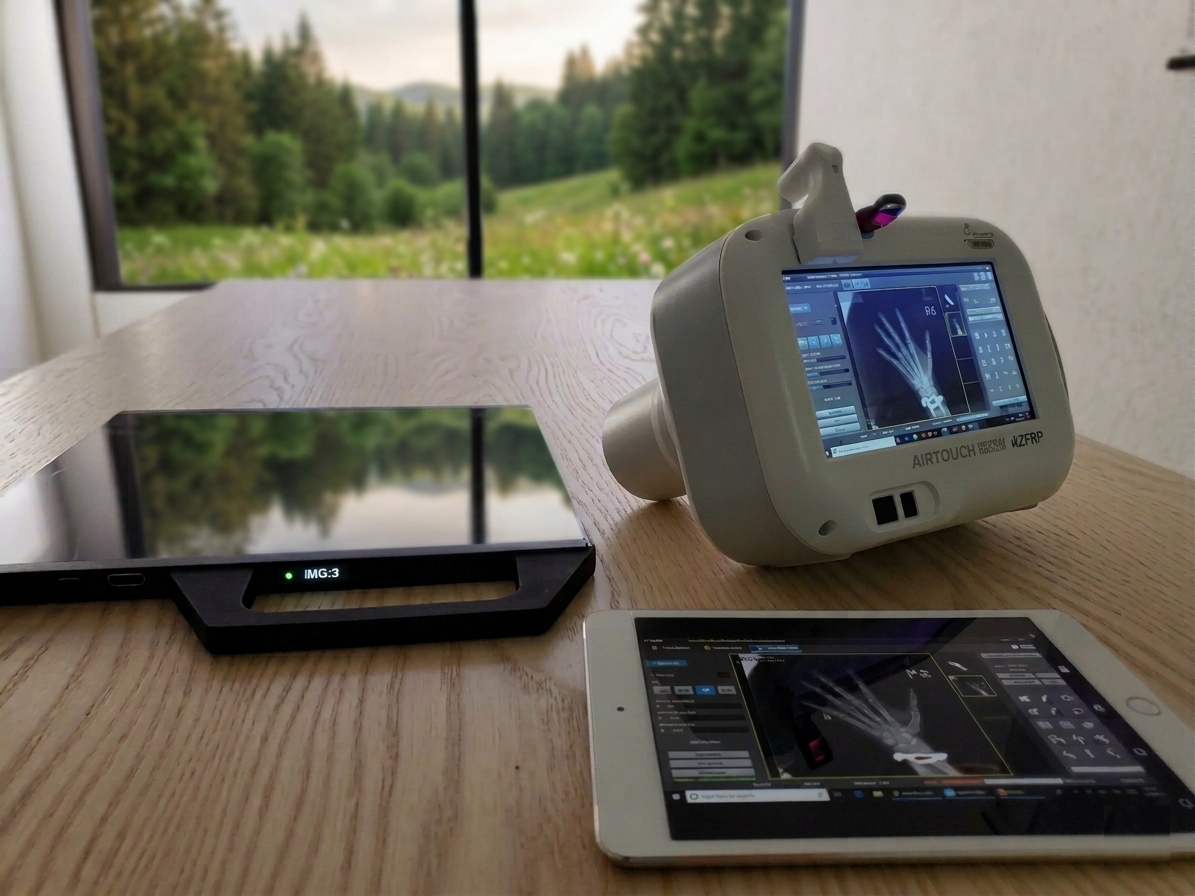

AiRTouch 905 portable X-ray in clinical use — with tablet workstation
Key Features

Engineered for Imaging Without Constraints

Where conventional portables tether you to a workstation, AiRTouch puts the entire imaging chain in one carry-case device — sensor, PC, touch interface, and wireless transmission.

High-Performance Digital Sensor

Direct image acquisition on the device — no separate cassette or external workstation required.

Built-in PC & 10.1″ Touch

Configure exposure, view images, and operate the system directly from the on-board HD touch display.

Wireless Image Transmission

Send images via the built-in workstation — no hand-off to a separate computer between exposure and review.

Field-Deployable

Lightweight carry-case form factor — suitable for hospitals, home visits, ambulances, and remote screening programs.

On the Device

Hardware Walkthrough

Five operational features that make AiRTouch a self-contained imaging unit.

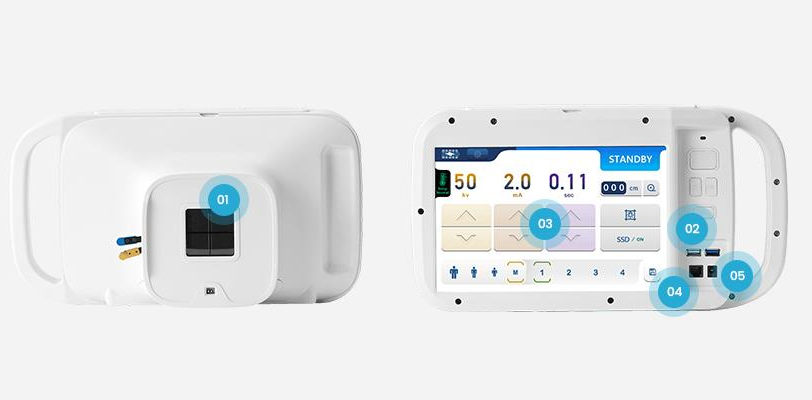

AiRTouch 905 top and front views with numbered callouts for collimator, USB ports, touch screen, ethernet, and charging port
01

Adjustable Collimator

Precise exposure-area adjustment via knobs, with LED guidance lights and an automatic distance measurement sensor for operational convenience.

02

USB Ports

Provides USB 2.0 and USB 3.0 ports for powering peripheral devices.

03

10.1″ Touch Screen Display

Adjust exposure parameters and view images directly on the high-definition 10.1″ touch screen.

04

Ethernet Port

Includes an ethernet port for connecting the exposure hand switch.

05

Charging Port

Simple battery charging — can be plugged directly into a residential 120 V outlet, supporting deployment in environments without medical-grade power.

Specifications

Technical Specifications

Manufactured by Livermore Tech, USA. PT TIM is preparing to participate in the tender for portable X-ray procurement with the Indonesian government.

Imaging Engine

Power Output450 W
kV / mA50 – 90 kV / 2 – 5 mA
Exposure Time0.04 – 1.3 sec
CollimatorMulti-leaf collimator (adjustable)
Anode TypeStationary anode
Anode Angle19°
Focal Spot0.5 mm
Heat Capacity10,000 J

System & Regulatory

Display10.1″ HD Touch Screen
ConnectivityWi-Fi · Ethernet · USB 2.0 / 3.0
Built-in PCYes — on-device acquisition + workstation
PowerBattery + 120 V outlet charging
ManufacturerLivermore Tech — USA
PermitsIDAK + BAPETEN (Indonesia)
Local DistributorPT Tangan Ibu Medis
Diagnostic Coverage

Anatomical Imaging Regions

Engineered for exceptional X-ray examinations without constraints — precise diagnostic capability across major anatomical regions.

Head
Chest
Shoulder
Elbow
Hand
Lumbar Spine
Knee
Foot
Deployment

Suitable for Rugged, Mobile & Non-Traditional Environments

AiRTouch's self-contained design unlocks imaging in scenarios where conventional X-ray simply cannot go.

Home Care

Nursing facilities and at-home patient visits

Ambulance & Casualty

Casualty department and emergency response

Mobile / Field Hospital

Mobile clinics and field hospital deployments

Remote & Developing Areas

Developing countries and geographically remote places

Maritime & Open Sea

Ships and offshore medical environments

Deploying portable X-ray in Indonesia?

PT TIM is preparing for the Indonesian government tender for portable X-ray procurement. Talk to us about pilots, distribution, and TB screening programs.
